Round bar 4-10mm
III-class bar 4-8mm
Straightening wheel Θ50*57mm
Wheel material Cr12/8pcs
Straightening frame L560*T:15mm
Frame material 45# steel
Bearing house 210 model
Motor power 7.5kw-4P
Input voltage 220v/380v
Motor speed 1440rpm
Straightening speed 38m/min
Dimension 1440*620*880mm
Net weight 234kg

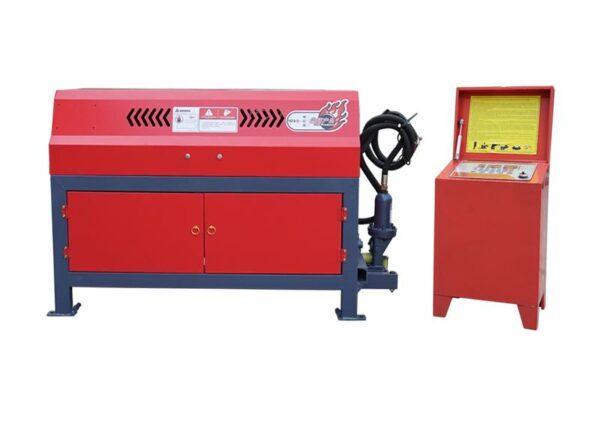

| Model | GT4-10 |
| Round bar | 4-10mm |
| III-class bar | 4-8mm |
| Straightening wheel | Θ50*57mm |
| Wheel material | Cr12/8pcs |
| Straightening frame | L560*T:15mm |
| Frame material | 45# steel |
| Bearing house | 210 model |
