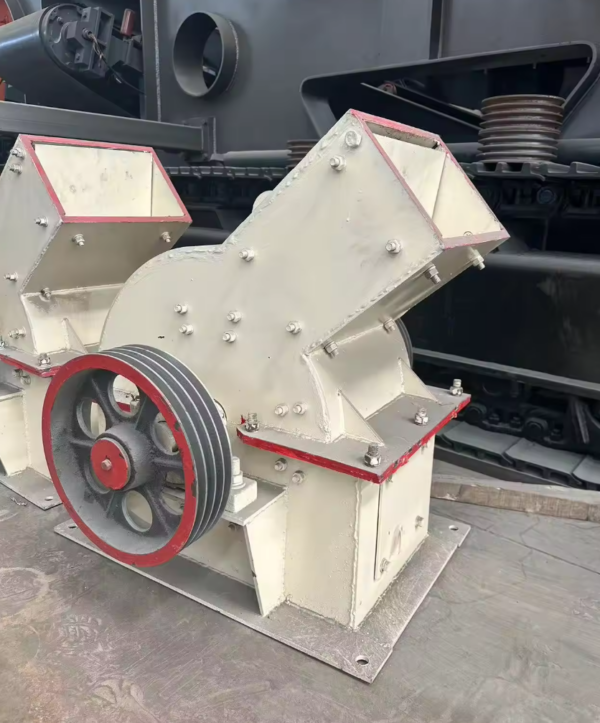

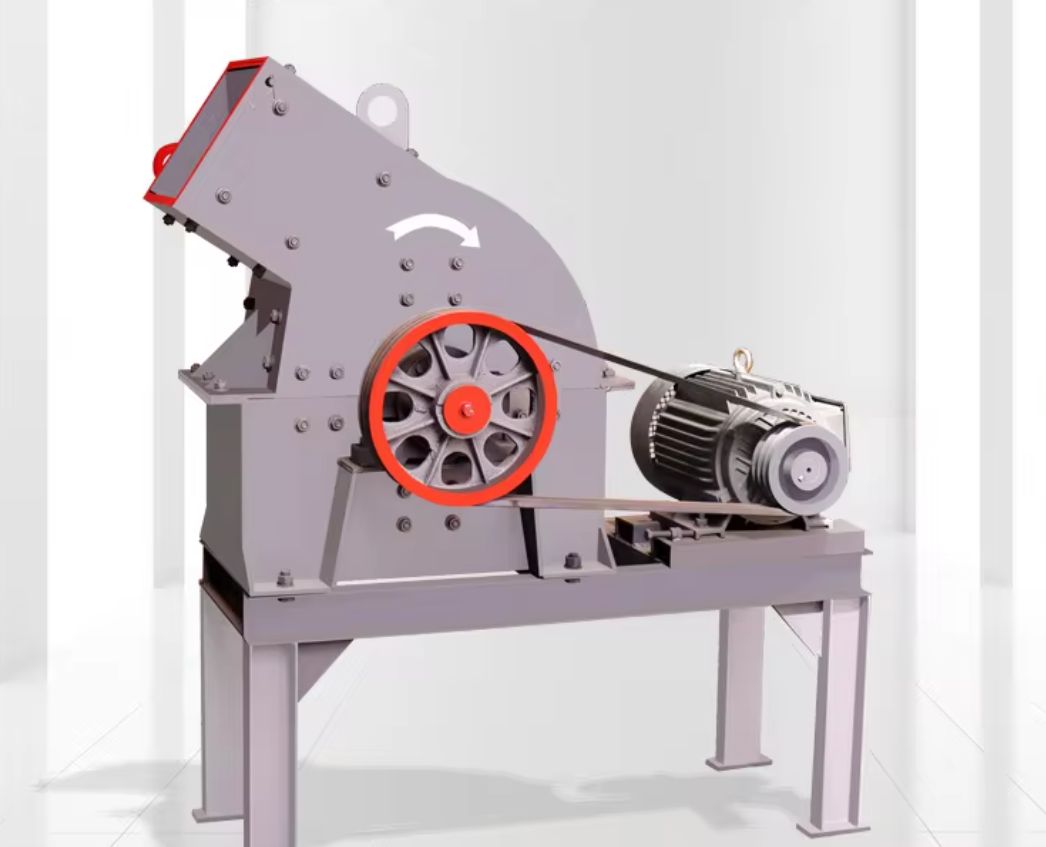

Details about Small Hammer Crusher
|
Model
|
Motor power
|
Discharge particle size
|
Feed port size
|
Output per hour
|
Number of hammer heads |
Weight
|
| 200*300 | 5.5-4kw | 3-20mm(adjustable) | 200*150mm | 3-4T | 9 | 230kg |
| 300*400 | 7.5-4kw | 280*250mm | 5-7T | 16 | 600kg | |
| 310*520 | 1 5-4kw | 310*250mm | 7-10T | 20 | 800kg | |
| 400*600 | 22-4kw | 440*290mm | 10-15T | 20 | 1200kg | |
| 600*600 | 30-4kw | 590*330mm | 20-30T | 24 | 1500kg | |
| 600*800 | 55-4kw | 650*460mm | 25-40T | 24 | 1900kg | |
| 800*800 | 75-4kw | 650*480mm | 30-50T | 28 | 2000kg | |
| 800*1000 | 90-4kw | 650*550mm | 40-60T | 28 | 3600kg | |
| 1000*1000 | 110-4kw | 850*580mm | 45-80T | 32 | 5000kg |
