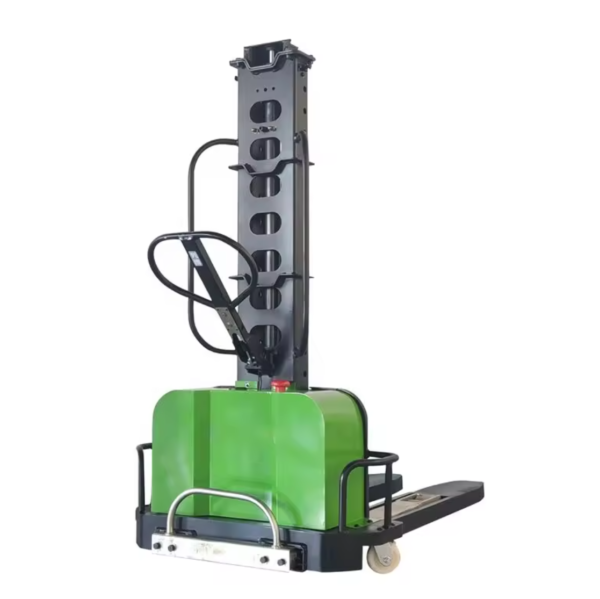

Details about Self load stacker
|
Autologous stacker parameter table
|
|||||
|
Liftingheight
|
mm
|
1100
|
1300
|
1500
|
|
|
Loadcapacity
|
kg
|
700
|
|||
|
Loadcenter
|
mm
|
400
|
|||
|
Overall length of frame
|
mm
|
1558
|
|||
|
Overall width of frame
|
mm
|
850
|
|||
|
Mast lowered height
|
mm
|
1430
|
1630
|
1830
|
|
|
Max heightmast lifted with backrest
|
mm
|
2680
|
2880
|
3080
|
|
|
Fork length
|
mm
|
1160
|
|||
|
Fork outside width
|
mm
|
565
|
|||
|
Fork inside width
|
mm
|
225
|
|||
|
Rated output
|
kw
|
0.8
|
|||
|
Battery voltage/capacity
|
V/AH
|
12/45
|
|||
|
Self weight with battery
|
kg
|
220
|
245
|
265
|
|
|
All-electric truck-mounted forklift parameters
|
||||
|
model（型号）
|
TF10-13
|
TF10-15
|
||
|
Maximum load capacity
|
kg
|
1000
|
||
|
with load center at
|
mm
|
400
|
||
|
Maximum lifting height
|
mm
|
1300
|
1500
|
|
|
Overall length of frame
|
mm
|
1600
|
||
|
Overall width of frame
|
mm
|
890
|
890
|
|
|
Mast lowered height
|
mm
|
1630
|
1830
|
|
|
Max height(mast lifted with backrest)
|
mm
|
2880
|
3080
|
|
|
Wheelbase
|
mm
|
995
|
||
|
Fork length
|
mm
|
1200
|
||
|
Fork outside width
|
mm
|
630
|
||
|
Fork inside width
|
mm
|
240
|
||
|
Fork thickness
|
mm
|
70
|
||
|
min frounf height
|
mm
|
30
|
||
|
Fork lowered height
|
mm
|
80
|
||
|
Minimum turning radius
|
mm
|
1300
|
||
|
Rated output
|
kw
|
0.75
|
||
|
Rated output
|
kw
|
1.2
|
||
|
Li-ion battery
|
V/AH
|
24/48
|
||
|
Weight （with battery）
|
kg
|
380
|
390
|
|
