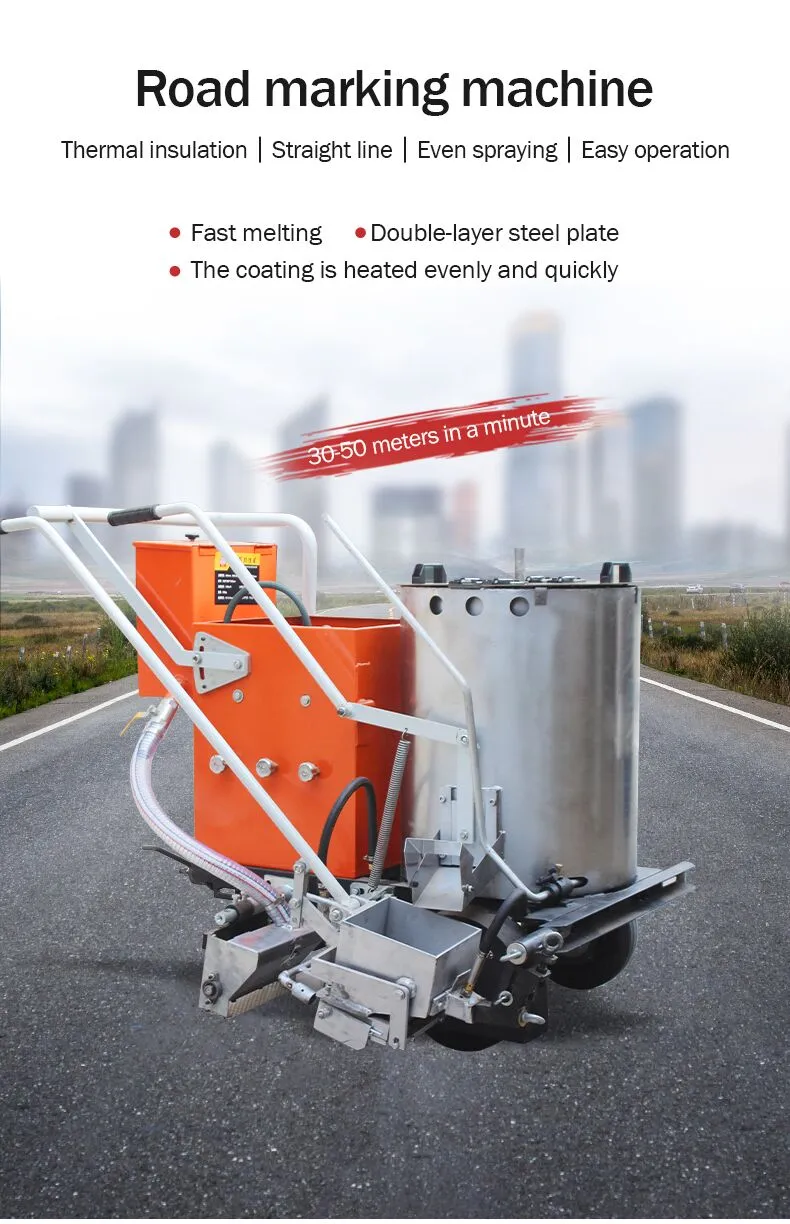

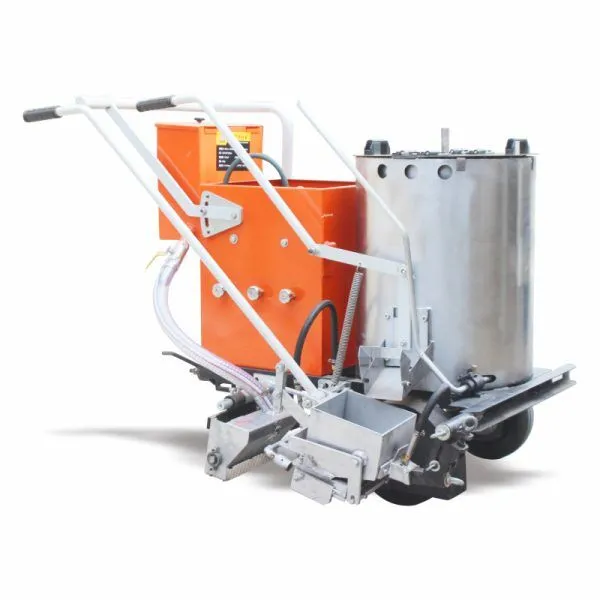

Road line painting marking machine

Marking width:100-450mm
Coating speed:1.5km/h
Heating temperature :180-210℃
Marking thickness:1-3mm
Weight:135 kg
Dimensions:140 × 90 × 100 cm
Brand Name:GaoTeng Machine

Details about Road line painting marking machine



Model
HX-36
Coating width
100-450mm
Coating speed
1.5km/h
Heating temperature
180-210
Heating method
Liquid gas
Storage capacity of glass beads
25kg
Standard hopper configuration
150mm
Coating volume
100 kg/barrel
Marking thickness
1-3mm
Overall dimension
1320 * 850 * 1000mm
Weight
135kg
Heating speed
20-30 minutes
Glass bead dispersion
20-30g / 15cm

A thermoplastic road marking machine is the key equipment used in thermoplastic road marking construction, it needs to work together with a thermoplastic preheater. The marking shoe is made of high-precision cast iron, which can make the road line order, uniform thickness, and more beautiful. The grounded knife of marking shoes can adapt to different kinds of roads. The glass beads dispenser can dispense glass beads automatically. The paint tank has a double layer of stainless steel, which can keep warm and insulate against heat, it can help save energy and avoid form scalding. The machine has the advantage of high efficiency, high quality, easy to operate, and convenient for maintenance.
If you have a lot of work, you can connect it with our boost vehicle, which can help you save the workforce and improve efficiency.
