Details about Mini farm cab 1ton excavator
|
Model
|
ID-10
|
|
Weight
|
1000kg
|
|
Digging bucket capacilty
|
0.025cbm/120kg
|
|
Bucket width
|
380mm
|
|
Engine
|
CHANGCHAI (192FAM)
|
|
Optional Engine
|
BRIGGS & STRATTONYANMAR, Koop, Yanmar
|
|
Bore stroke
|
Single cylinder, fan cool
|
|
Rated power
|
8.2 kw/3600r/min
|
|
Main pump
|
G5-6
|
|
Displacement
|
6.8ml/r
|
|
Swing motor
|
SANYANG (BMRS -250)
|
|
Traveling motor
|
SANYANG (BMT-245)
|
|
Travel speed
|
1.5kmv/h
|
|
Overall dimension( LxWWxH)
|
2775 x 930 x 2219 mm
|
|
Wheelbase
|
910 mm
|
|
Total length of track
|
1230mm
|
|
Platiorm ground dearance
|
380 mm
|
|
Platform back tuming radius
|
784mm
|
|
Chassis widh
|
896mm
|
|
Track width
|
180 mm
|
|
Chassis ground clearance
|
132mm
|
|
Track height
|
320 mm
|
|
Max. Digging depth
|
1650 mm
|
|
Max. Vertical digging depth
|
1375 mm
|
|
Max. Digging height
|
2610 mm
|
|
Max. Dumping height
|
1850 mm
|
|
Max. Digging radius on ground
|
2850 mm
|
|
Min. Rotation radius
|
1330 mm
|
|
Max. Upgrade height of bulldozer blade
|
345 mm
|
|
Max. Digging depth of bulldozer blade
|
255 mm
|

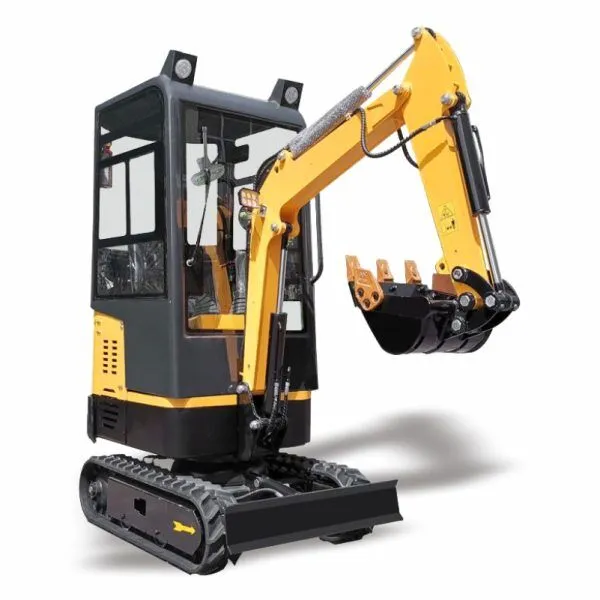

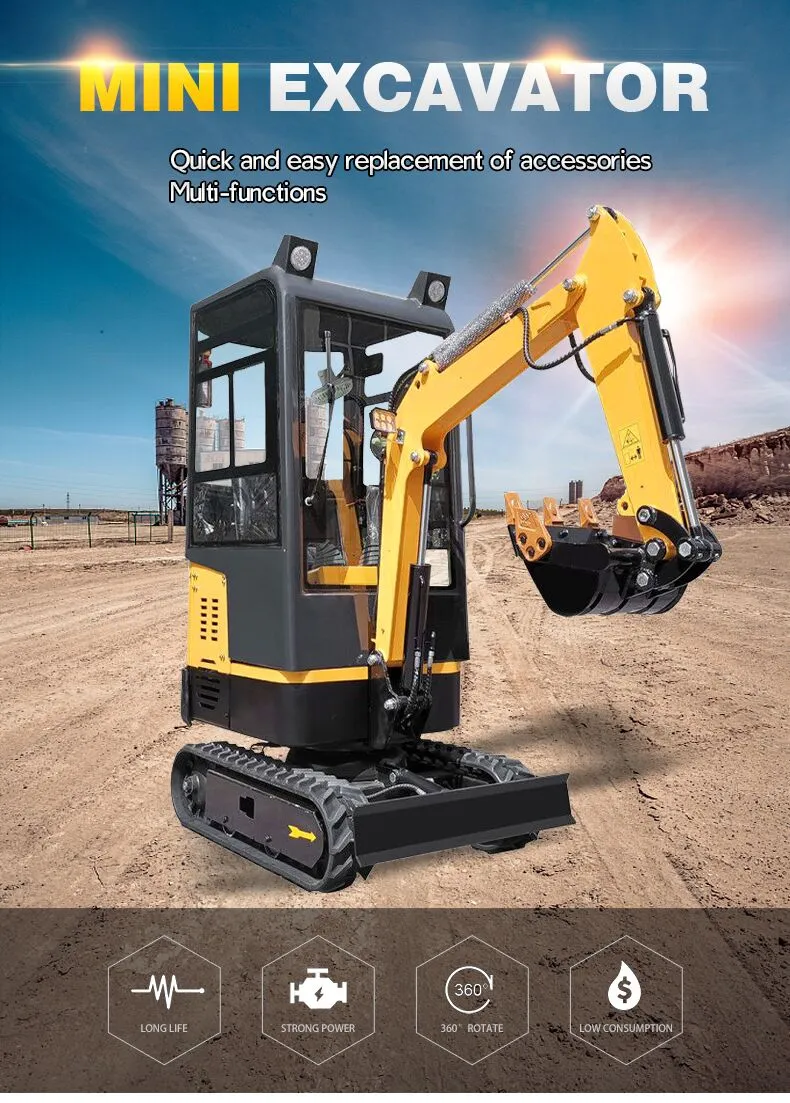

The ID-10 Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.
- Engine: CHANGCHAI-192 engine, single-cylinder air-cooled, 12HP, 9KW
- Hydraulic pump (gear pump) is easy to maintain, long life
- Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets you access and work in the tightest areas. Dozer float features allow for easy clean-up.
- Multiple valves under the operating handle, The benefit of less effort and improved control is in your hands!
- Rubber track no damage to cement, tile floor
- Diesel level gauge: Check engine oil when it is not easy to start
