Details about Mini excavator 1800KG digger
|
Model
|
ID-18B
|
| Overall dimension (L*W*H) | 3865mm* 1050mm*2270mm |
| Axle base(Track length on the ground) | 1230mm |
| Track gauge | 820mm |
| Min. Ground clearance | 210mm |
| Swing radius at tail | 1125mm |
| Maximum Travel speed | 3 5km/h |
| Width of track shoe(Rubber & steel track) | 230mm |
| Number of track shoes per side(Steel track only) | 38 pcs |
| Number of upper roller/ bottom roller (per side) | 0/4 |
| Standard bucket capacity | 0.06m3 |
| Swing speed | 10~12 rpm |
| Max. Grade ability | 35° |
| Max. Bucket digging force | 14KN |
| Max. Arm digging force | 10KN |
| Hydraulic system pressure | 18Mpa |
| Machine weight | 1800kg |
| Emission Standard | Tier 3/ Stage II |
| Make | GAOTENG |

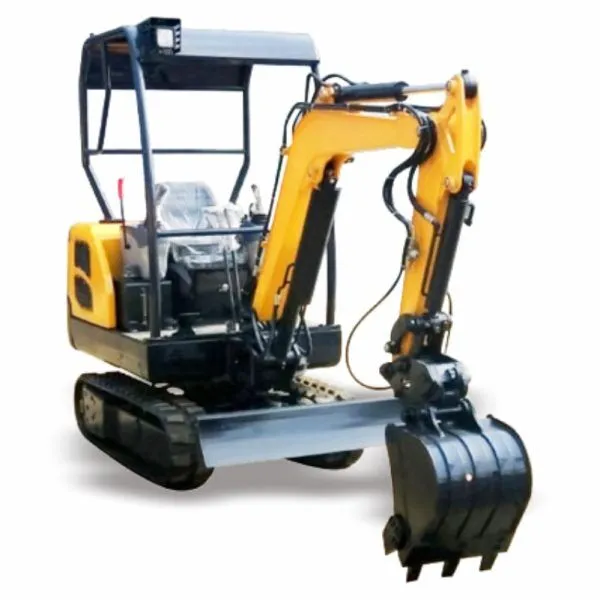

The ID-18 Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.
- Engine: GAOTENG engine, single-cylinder air-cooled, 25HP, 18.4KW
- Hydraulic pump (gear pump) is easy to maintain, long life
- Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets you access and work in the tightest areas. Dozer float features allow for easy clean-up.
- Multiple valves under the operating handle, The benefit of less effort and improved control is in your hands!
- Rubber track no damage to cement, tile floor
- Diesel level gauge: Check engine oil when it is not easy to start
