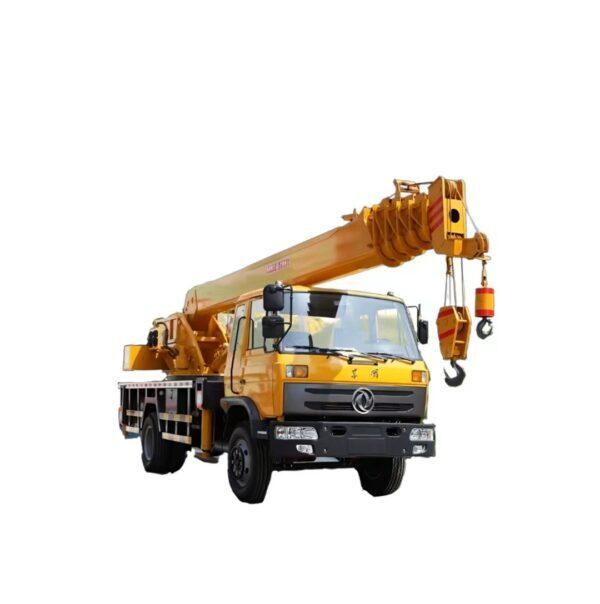

Details about Hydraulic truck crane
|
Model
|
HWQY8T
|
|
Chassis model
|
Homemade (Weichai)
|
|
Total weight
|
8000Kg
|
|
Overall dimensions
|
8m*2.06m*3m
|
|
Wheelbase
|
2.6/2.8 (optional)
|
|
Maximum rated lifting capacity
|
8000Kg
|
|
Maximum lifting height
|
25m、28m
|
|
Engine model
|
490 engine
|
|
Transmission model
|
6-speed gearbox
|
|
Power/horsepower
|
74KW (100HP)
|
|
Emission standard
|
National III
|
|
Braking system
|
Air brake
|
|
Steering mechanism
|
Hydraulic power steering
|
|
Boom structure type
|
4m 7-section
|
|
Main hoisting mechanism
|
8Twinch
|
|
Auxiliary hoisting mechanism
|
6Twinch
|
|
Slewing suppor
|
External gear 1.1 meters
|
|
Slewing mechanism
|
Planetary steering
|
|
Dual power (Diesel/Electric)
|
11 kW IP6 pole motor
|
|
Working lights
|
Two
|
|
Tires
|
750-16
|
