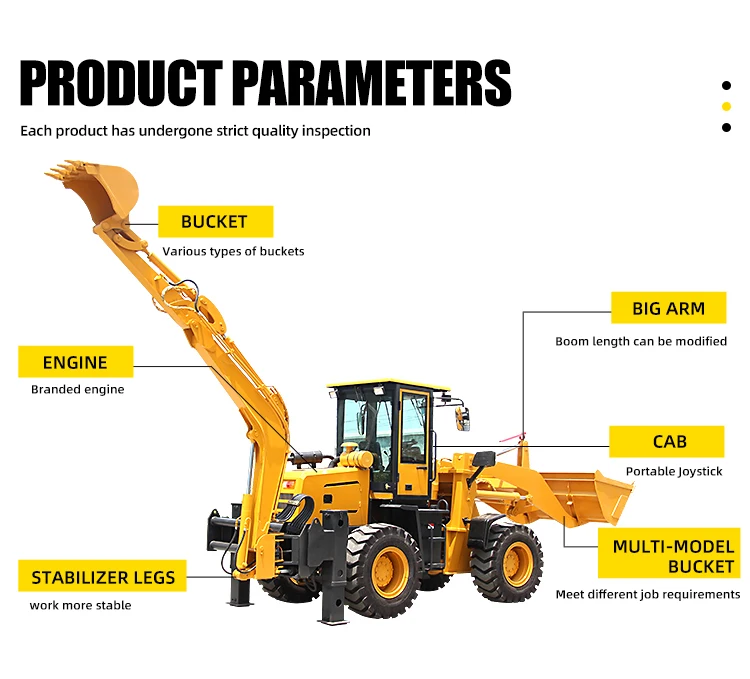

HW25-30 backhoe loader

Rated Power:92KW
Rated speed:2400 R/MIN
Weight:6000KG
Dimension:6500 * 2040 * 2800 mm
Brand Name:GaoTeng Machine

Details about HW25-30 backhoe loader



Model
HW25-30
Front shovel action time and (S)
12
Dimensions (mm)
6500*2040*2800
Engine model
YN48GBZ
Wheelbase (mm)
2675
Engine type
Turbocharged four-stroke
Wheel base (mm)
1630
Rated power (KW)
92
Minimum ground clearance (mm)
280
Rated speed (r/min)
2400
System pressure (MPa)
18
Number of cylinders – inner diameter
4-108
Machine weight (Kg)
6000
Gearbox
Fixed shaft power shift
Maximum speed (Km/h)
28
Number of stalls
Front 2 Back 2
Maximum gradeability (°)
25
Hydraulic torque converter
ZL29A
Minimum turning radius (mm)
4500
Type
Articulated full hydraulic steering
Maximum digging depth (mm)
2600
Steering angle (°)
33
Excavation unloading height (mm)
2300
Type
Wheel speed reduction
Maximum digging radius (mm)
4600
Specification
16/70-20
Bucket width (mm)
600
Front wheel air pressure (KPa)
250
Bucket capacity (m³)
0.25
Rear wheel air pressure (KPa)
250
Maximum digging height (mm)
4300
Service brake
Air top oil caliper disc brake
Maximum digging force (KN)
28
Parking brake
Manual
Excavator rotation angle (°)
180
Fuel tank(L)
50
Maximum unloading height (mm)
3500
Hydraulic oil tank (L)
50
Maximum unloading distance (mm)
900
Drive type
Four-wheel drive
Bucket capacity (m³)
1.2
Variable speed
Hydraulic transmission
Loading maximum lifting height (mm)
4300
Braking distance (mm)
620
Maximum rise force (KN)
42
Excavator rotation angle (°)
270 degree rotation is customizable
