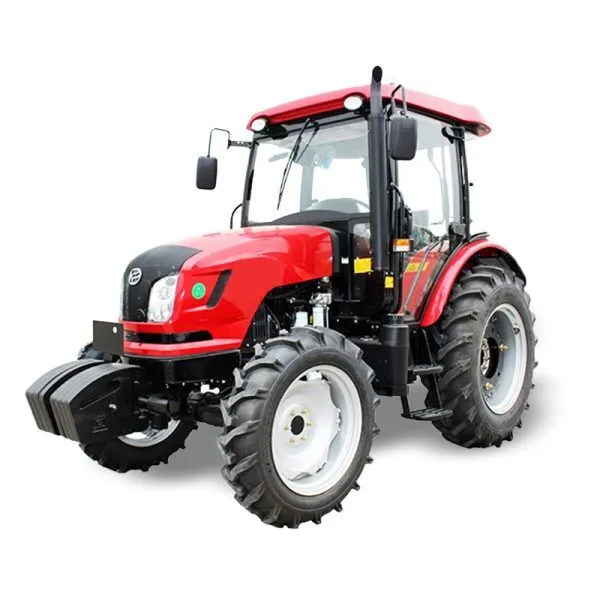

Details about High Quality Mini Tractor Backhoe Loader
| Model | DF704-9 | DF804-9 | DF904-9 |
| Engine power | 51.5KW | 58.8KW | 66.2KW |
| Size | 4165*1845*2635mm | 4165*1845*2635mm | 4165*1845*2635mm |
| Wheelbase | 2075mm | 2075mm | 2075mm |
| Min. ground clearance | 395mm | 395mm | 420mm |
| Type | 4*4 | 4*4 | 4*4 |
| Front tire | 9.5-20/8.3-24/9.5-24 | 9.5-20/8.3-24/9.5-24/11.2-24/9.5-20/8.3-24/9.5-24 | |
| Rear tire | 12.4-28，13.6-28，14.9-28，14.9-30，11-30 | 12.4-28/13.6-28/14.9-28/11-32/14.9-30/16.9-30 | |
| Weight | 3070KGS | 3070KGS | 3070KGS |
IDEAL series large and medium-sized tractors are from 20 to 440hp and matching products and have an annual productivity of 20,000 sets. Products are sold all around the country and are exported to regions in Europe, the United States, Russia, Ukraine, South America, Africa, Southeast Asia, Australia, etc.
Always prioritizing users’ demands, the company absorbs advanced experience of mature domestic machine types and introduces the latest advanced technology from abroad to continuously improve and perfect products in combination with the condition of China to better meet different operation requirements of wide users.
Diesel engine: Adopt YUCHAI or WEICHAI diesel engine, good reliability, large reserves of torque, low fuel consumption, and high economic efficiency. Adopts turbo-charging system so it has reliable performance and strong power.
Flexible steering: Gearbox using 4 × (4+2) engaging sleeve, shuttle-type gearshift, there are 16 forward gears, 8reverse gears, a reasonable match between the gears, and have high efficiency.
Wear-resistant tires: Full hydraulic front wheels steering, independent oil circuit for the steering system, manipulating flexible, reliable, and save energy.
Standard configuration: 16F+8R gears, has the features like energy-saving, reliability, and comfort.
Instrument cluster: Adoption of new U.S.A ACTUANT instrument cluster gives advantages of high sealing performance and multi-information integrated display.
