Details about Garden Mini Excavator Digger
|
Model
|
ID-10D
|
|
Weight
|
1000kg
|
|
Digging bucket capacity
|
0.025cbm/120kg
|
|
Bucket width
|
380mm
|
|
Engine
|
KOOP 192F
|
|
Optional Engine
|
BRIGGS & STRATTON YANMAR
|
|
Bore stroke
|
Single cylinder, fan cool
|
|
Rated power
|
7kw/3000r/min
|
|
Main pump
|
G5-6
|
|
Displacement
|
6.8ml/r
|
|
Swing motor
|
SANYANG (BMRS 250)
|
|
Traveling motor
|
SANYANG (BMT-245)
|
|
Travel speed
|
1.5km/h
|
|
Overall dimension( LxWxH)
|
2775x 930 x 2219 mm
|
|
Wheelbase
|
910mm
|
|
The total length of track
|
1230mm
|
|
Platform ground clearance
|
380mm
|
|
Platform back turning radius
|
784mm
|
|
Chassis width
|
896mm
|
|
Track width
|
180mm
|
|
Chassis ground clearance
|
132mm
|
|
Track height
|
320mm
|
|
Max. Digging depth
|
1650mm
|
|
Max. Vertical digging depth
|
1375mm
|
|
Max. Digging height
|
2610mm
|
|
Max. Dumping height
|
1850mm
|
|
Max. Digging radius on ground
|
2850mm
|
|
Min. Rotation radius
|
1330mm
|
|
Max. Upgrade height of bulldozer blade
|
345mm
|
|
Max. Digging depth of bulldozer blade
|
255mm
|

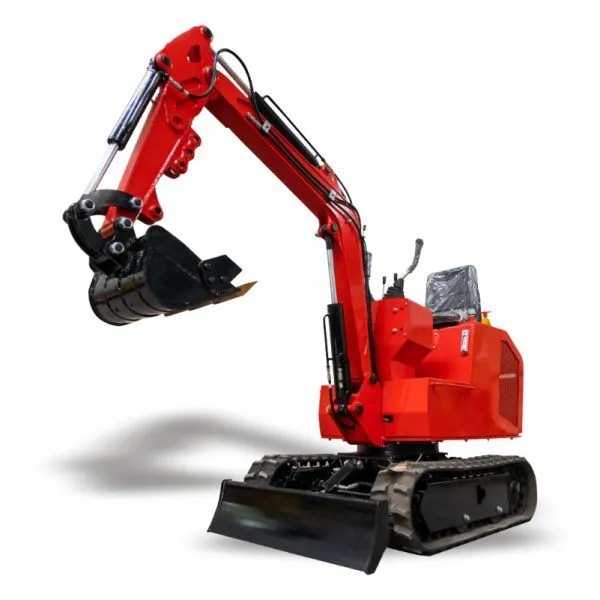

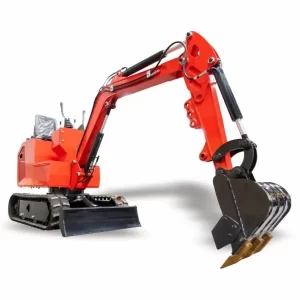

The ID-10D Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.
- Engine: K-POP 192 engine, single-cylinder air-cooled, 9HP, 7KW
- Hydraulic pump (gear pump) is easy to maintain, long life
- Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets you access and work in the tightest areas. Dozer float features allow for easy clean-up.
- Multiple valves under the operating handle, The benefit of less effort and improved control is in your hands!
- Rubber track no damage to cement, tile floor
- Diesel level gauge: Check engine oil when it is not easy to start
