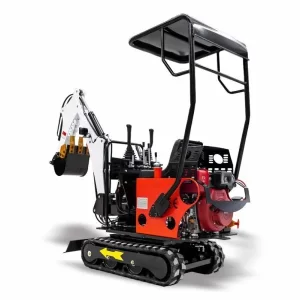

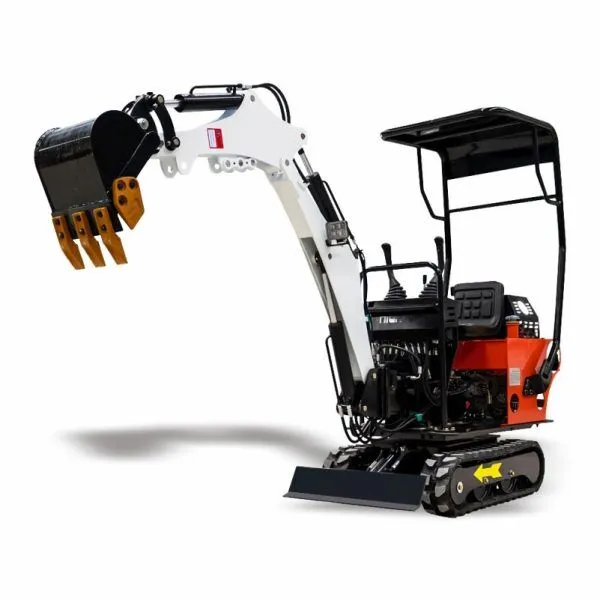

Details about Garden Farm 800kg mini excavator
|
Model
|
ID-08
|
|
Rated power
|
12HP
|
|
Bucket Capacity
|
0.025 m3
|
|
Engine Model
|
CHANGCHAI 192
|
|
Weight
|
650 kg
|
|
Max. digging force
|
7.5KN
|
|
Pump form
|
Single gear pump
|
|
Set working pressure
|
14Mpa
|
|
Swing speed
|
12 rpm
|
|
Travel speed
|
2.2Km/h
|
|
Gradeability
|
30°
|
|
Ground pressure
|
19Kpa
|
|
Max. digging distance
|
2450mm
|
|
Max. digging depth
|
1200mm
|
|
Max.digging height
|
2350mm
|
|
Max. dumping height
|
1600mm
|
|
Min. Swing radius
|
1100mm
|
|
Max. Upgrade height of bulldozer blade
|
120mm
|
|
Max. Digging depth of bulldozer blade
|
200mm
|
|
Total width
|
720-780mm
|
|
Total height
|
1300mm
|
|
Total length
|
2430mm
|
|
Min. ground clearance
|
80mm
|
|
Track ground length
|
1140mm
|
|
Track width
|
150mm
|
The ID-08 Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications. 1. Engine: CHANGCHAI-192 engine, single-cylinder air-cooled, 12HP, 9KW 2. Hydraulic pump (gear pump) is easy to maintain, long life 3. Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets you access and work in the tightest areas. Dozer float features allow for easy clean-up. 4. Multiple valves under the operating handle, The benefit of less effort and improved control is in your hands! 5. Rubber track no damage to cement, tile floor 6. Diesel level gauge: Check engine oil when it is not easy to start
