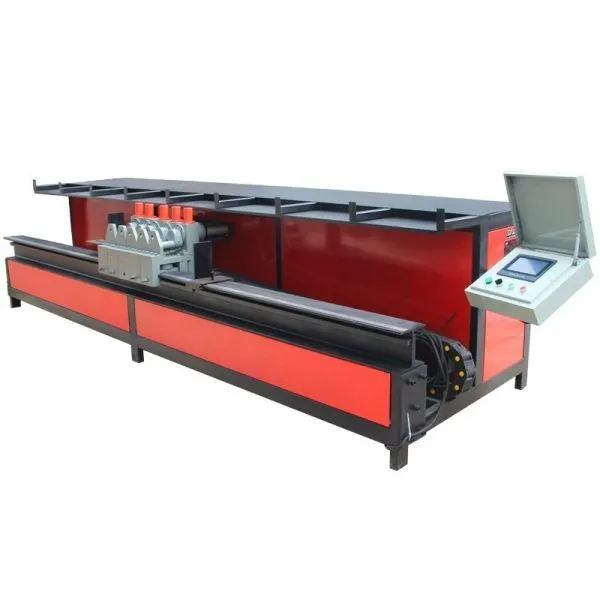

Details about Five head steel hoop bending machine
| Maximum bending angle | 180° | Rated voltage | 380V |
| Maximum bending diameter | φ18mm | Motor Power | 8KW |
| loading weight for materials support | 1000KG | Molding speed | 12S |
| Side length error | ±2mm | Forming angle | ±1° |
| Weight(KG) | 1400/1650/1850 | Body length | 4m*6m*7m |
| Limit processing quantity | φ6mm | φ8mm | φ10mm | φ12mm | φ14mm | φ16mm |
| Quantity | 12 | 10 | 7 | 4 | 2 | 1 |
Continuous molding, intelligent control, one-time molding. Equipped with two independent motors, higher power, higher efficiency, and lower failure rate. The efficiency of hoop bending is improved, the diameter of the steel bar is 12mm, and the average output is 1.5t/h
Ordinary stirrup bending machine, to a large extent, depends on manual molding, manual operation on the workbench. Waste manpower and raise costs The five head stirrup bending machines solve the problem of steel bar processing. With a hydraulic system, the stability is improved and the faults are reduced.
