Details about Factory small digger hydraulic mini excavator
|
Model
|
ID-30
|
|
Total Length
|
4180mm
|
|
Total Width
|
1500mm
|
|
Total Height
|
2128mm
|
|
Ground Clearance
|
458
|
|
Ground Pressure
|
3000
|
|
Ground Pressure
|
38
|
|
Max. Digging Height
|
3900mm
|
|
Max. Digging Radius
|
4040mm
|
|
Max. Digging Depth
|
2500mm
|
|
Max. Dumping Height
|
2600mm
|
|
Slewing Angle
|
360°
|
|
Grade ability
|
25°
|
|
Bucket Capacity
|
0.1m3
|
|
Bucket Width
|
500mm
|
|
Swing angle of the boom
|
70/50L/R
|
|
Track Gauge
|
1150mm
|
|
Track Width
|
250/260mm
|
|
Track Length (on the ground)
|
2300mm
|
|
Main Pump
|
Triple Pump
|
|
Main Pressure
|
18Mpa
|
|
Max. Rpm of the pump
|
2500r/min
|
|
Pump Displacement
|
28ml/r
|
|
Model
|
CHANGCHAI390 /YANMAR3TNV88
|
|
Output
|
20/2200 / 19.6/2200KW/rpm
|

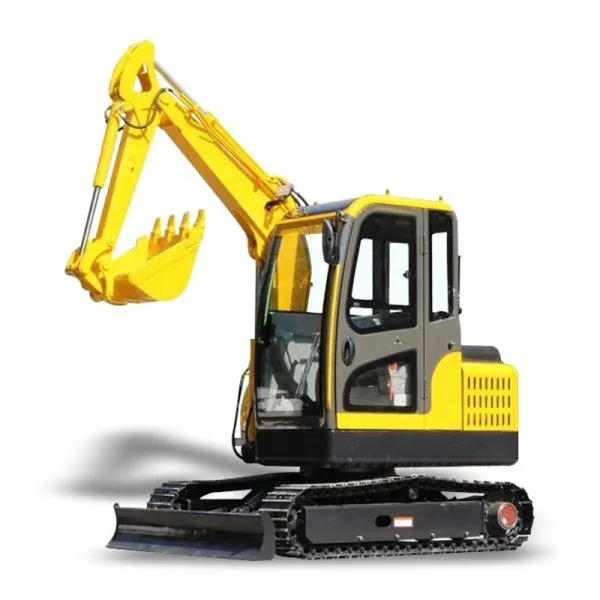

The ID-30 Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.
- Engine: CHANGCHAI390 /YANMAR3TNV88, single-cylinder air-cooled, 25HP, 18.4KW
- Hydraulic pump (gear pump) is easy to maintain, long life
- Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets you access and work in the tightest areas. Dozer float features allow for easy clean-up.
- Multiple valves under the operating handle, The benefit of less effort and improved control is in your hands!
- Rubber track no damage to cement, tile floor
- Diesel level gauge: Check engine oil when it is not easy to start

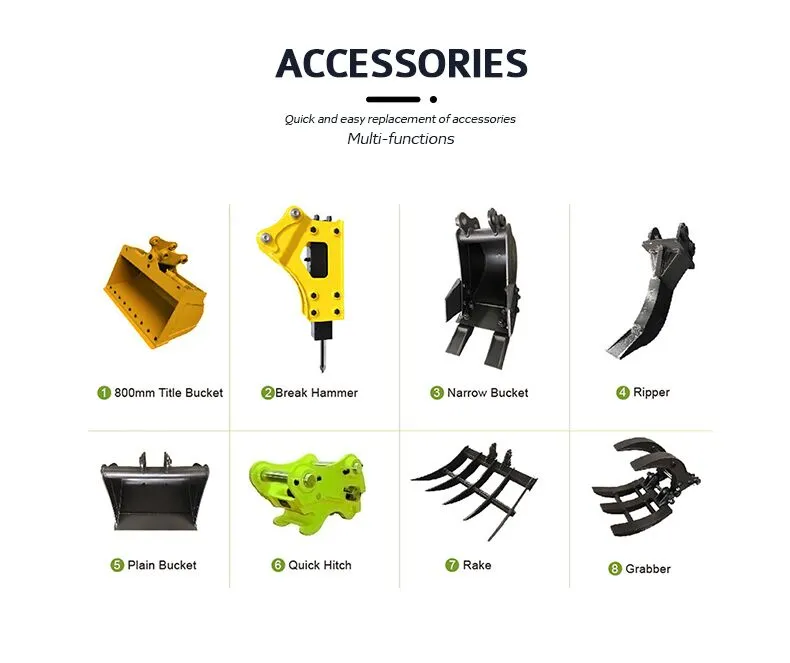

We also could supply excavator attachment tools including 20mm bucket,40 mm bucket, 60 mm bucket, Breaker hammer, Log grappler, Auger drilling, Ripper, Rake, Tool kit. We also could supply mini digger attachment tools as customer requests.
