Details about Crawler log grapple
|
Type number
|

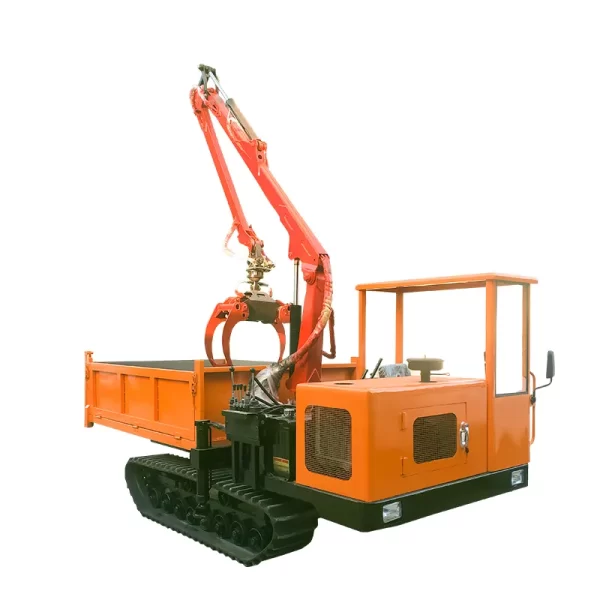

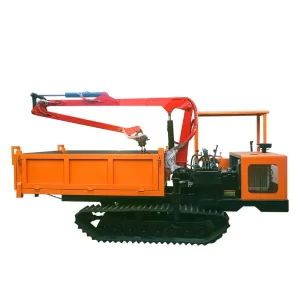

RLD-5T crawler dumper with wood grapple
|
|
Size(L*W*H: mm )
|
4200*1600*1600
|
|
Cabin size (mm)
|
2600*1600*550
|
|
Box steel plate thickness( mm )
|
Bottom 4 sides 3
|
|
Chassis width (m)
|
1.6
|
|
Engine model
|
CHANGCHAI 490
|
|
Engine power
|
34KW 47HP
|
|
Crawler specifications
|
400*90*62
|
|
Crawler system
|
Engineering rubber track
|
|
Number of unilateral tugs
|
7 groups
|
|
Tug diameter
|
200 Offset tug 206 Bearing
|
|
Hydraulic cylinder model
|
115*900 Single top dumper
|
|
Gearbox model
|
Strength 28
|
|
Start method
|
Electric start
|
|
Boom Arm
|
3m * 3section
|
|
Rated load (T)
|
5
|
|
Vehicle weight (kg)
|
2350
|
|
Gear
|
High/low（3+1）
|
|
Lifting height
|
1500mm
|
|
Driving speed (km/h)
|
0-15
|
|
Special custom
|
|
|
1. The specific size can be customized according to the requirements.
2. Multi-functional machine with a variety of optional accessories.
|
|
