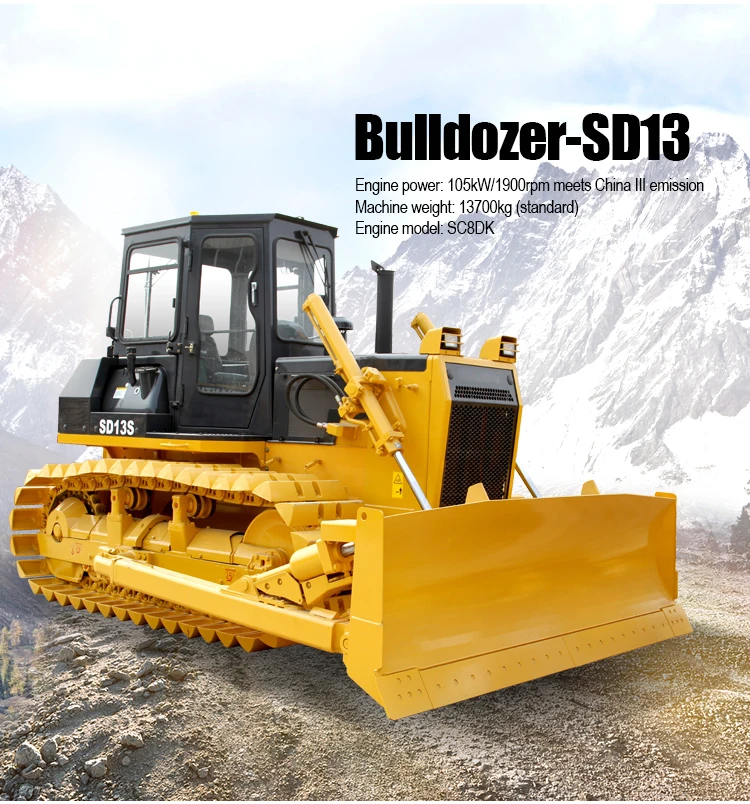

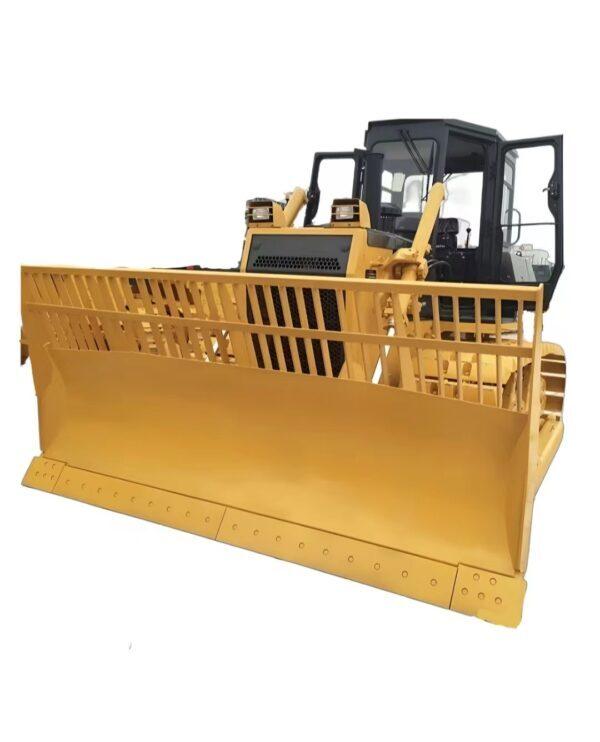

Details about Crawler dozer 105hp 220hp
|
Parameter name
|
HWSD13 (Standard version)
|
HWSD13S (Wetland version)
|
|
Operating weight (Kg)
|
13700
|
14900
|
|
Ground pressure (kPa)
|
53.8
|
38.4
|
|
Engine model
|
SC8D143G2B1 (China-II) /SC8DK (China-III)
|
SC8D143G2B1 (China-II) /SC8DK (China-III)
|
|
Rated power/rated speed (kW/rpm)
|
105/1900
|
105/1900
|
|
Overall dimensions of machine (mm)
|
4492*3185*2950
|
4492*3510*3000
|
|
Forward speed (km/h)
|
F1: 0-3.2 F2:0-5.9 F3:0-9.8
|
F1: 0-3.2 F2:0-5.9 F3:0-9.8
|
|
Reversing speed (km/h)
|
R1:0-3.9 R2:0-7.1 R3:0-11.9
|
R1:0-3.9 R2:0-7.1 R3:0-11.9
|
|
Center distance of track (mm)
|
1880
|
1880
|
|
Width of track shoes (mm)
|
460
|
700
|
|
Ground length (mm)
|
2365
|
2365
|
