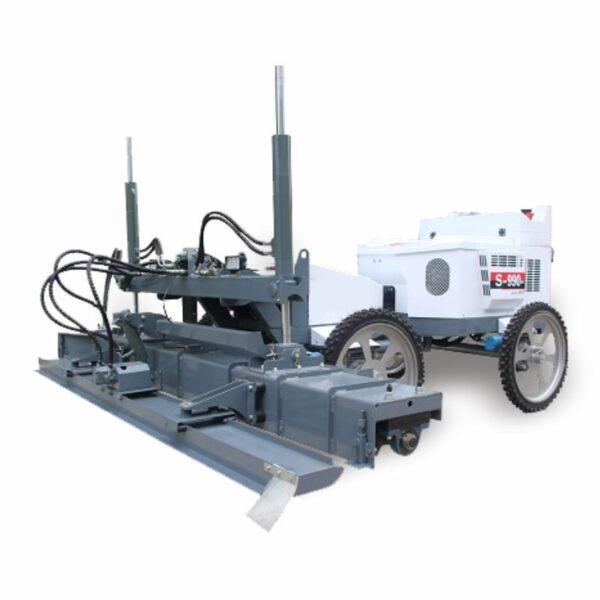

Details about Concrete laser screed leveling paving machine
| Model | S-990 |
| Power engine | B&S 3864 |
| Type | Diesel engine, 4-stroke |
| Power | 31KW,3000r/min |
| Engine oil | 17L |
| Fuel consumption rate | 1.5L-3.0L/H |
| Oil volume | 1.4L |
| Walking style | Wheeled |
| Drive System | Hydraulic motor four-wheel drive |
| Drive Control | Hydraulic drive |
| Travel speed | 3.3km/h |
| Steering Control | Electronically controlled steering |
| Hydraulic fluid oil volume | 30L |
| Vibrating method | Motor vibrating |
| Leveling thickness | 3-40cm |
| Paving method | Strand paving |
| Vibration frequency | 6000/min |
| Working width | 3300mm |
| Paving method | Strand paving |
| Stranding power | Hydraulic Motor |
| Stimulation force | 3000N |
| Work efficiency | 400-600Square meters/h |
| Elevation control | Hydraulic cylinder |
| Control System | Laser emitter |
| Control Effect | Flat, slope, double slope |
| Wheelbase | 1100mm |
| Seat position | Mid-mounted |
| Dimension | 3400*3000*1300mm |
| Weight | 960KG |
The machine relies on a gasoline generator to generate electricity, and drives the laser monitoring system with electric power. The computer control system drives the leveling part to level the concrete.

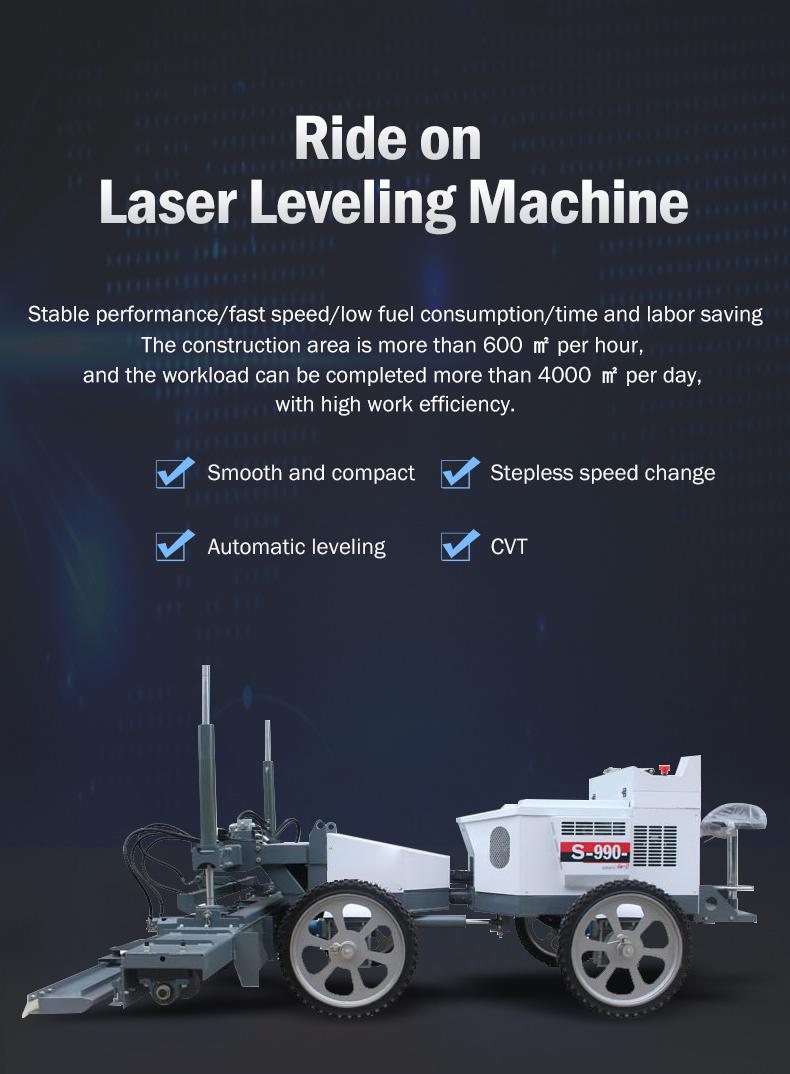

The Laser screed machine is used in large areas of concrete construction, such as modern industrial workshops, large markets, storage, airports, plazas, and so on. The Laser Screed can satisfy the construction requirements of large areas and high planeness and levelness.
