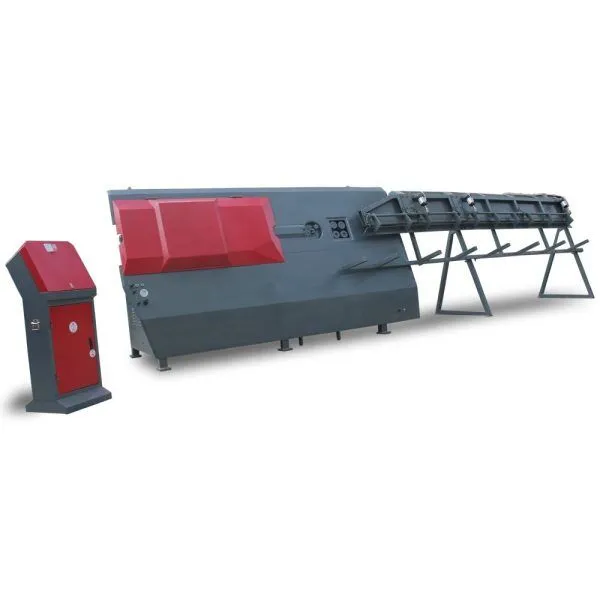

CNC steel hoop bending machine-GTW4-12

Voltage: 3PHASE:220VAC;380VAC;415VAC
Certification: CE ISO
Power:  5.5KW+15KW
Weight: 2200 kg
Dimension: 415 × 122 × 204 cm

Details about GTW4-12 CNC steel hoop bending machine



Model GTW4-12
Max feeding speed 85m/s
Max.Length for hoops 1000*1000mm
Min.Length for hoops 50mm
Motor power for bending 5.5 KW
Motor power for feeding 15 KW
Overall Size 4150*1220*2040mm
Weight 2200KGS
Bending direction ClockWise
Max.bending angle +180°
Capacity for double line 4-10mm
Capacity for single line 4-12mm

This CNC hydraulic bar straightening and cutting machine is used for straightening and straightening the cutting of steel and steel bars of the building with cold rolling, the failure rate of the equipment is low, and the traction speed is high, This machine is low consumption, no damage of rib, low noise, vibration, and is equipped with safety device, automatic counting parking device, has high production efficiency, safe and reliable work, equipment and other significant characteristics of low failure rate, simple product maintenance.

  • Split, multi-blade design (patented) to reduce consumption costs
  • Large storage capacity can save 400 processing geometric graphics, high degree automation
  • High-quality special material and high treatment to make straightening wheels, traction wheels, the metering wheel, longer life with lower operating costs
