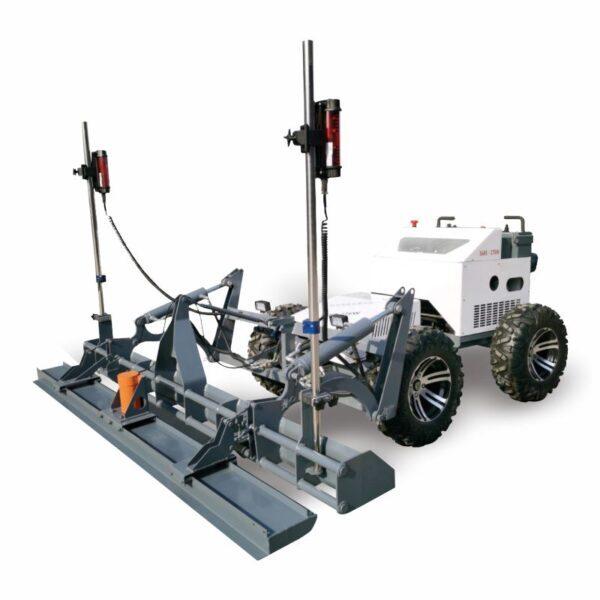

Details about Automatic Surface Laser Screed Machines
|
Model
|
S-685
|
|
Power engine
|
B&S
|
|
Type
|
Diesel engine, 4-stroke
|
|
Power
|
25HP,3600r/min
|
|
Engine oil
|
20L
|
|
Fuel consumption
|
3-4.5L/H
|
|
Oil volume
|
1.7L
|
|
Turning radius
|
5000mm
|
|
Hydraulic proportional valve
|
Rexroth
|
|
Control Effect
|
Flat, slope, double slope
|
|
Tires
|
100*90-21;27*9-14 Pneumatic Tires
|
|
Walking style
|
20square meters/min
|
|
Control method
|
Computerized laser scanning
|
|
Control Effect
|
Flat, slope, double slope
|
|
Drive method
|
Hydraulic motor four-wheel drive
|
|
Steering Control
|
Electronically controlled hydraulic
|
|
Hydraulic oil volume
|
40L
|
|
Laser controller
|
Leica
|
|
Leveling thickness
|
50-300mm
|
|
Leveling and lifting height
|
350mm
|
|
Paving method
|
Scraper paving
|
|
Vibration speed
|
4200/min
|
|
Work efficiency
|
300-500 square meters/h
|
|
Wheelbase
|
1068mm
|
|
Max. ground clearance
|
300mm
|
|
Concrete collapse degree
|
180±25mm
|
|
Dimension
|
3480*2700*1300mm
|
|
Weight
|
680KG
|
The Laser screed machine is used in large areas of concrete construction, such as modern industrial workshops, large markets, storage, airports, plazas, and so on. The Laser Screed can satisfy the construction requirements of large areas and high planeness and levelness.
