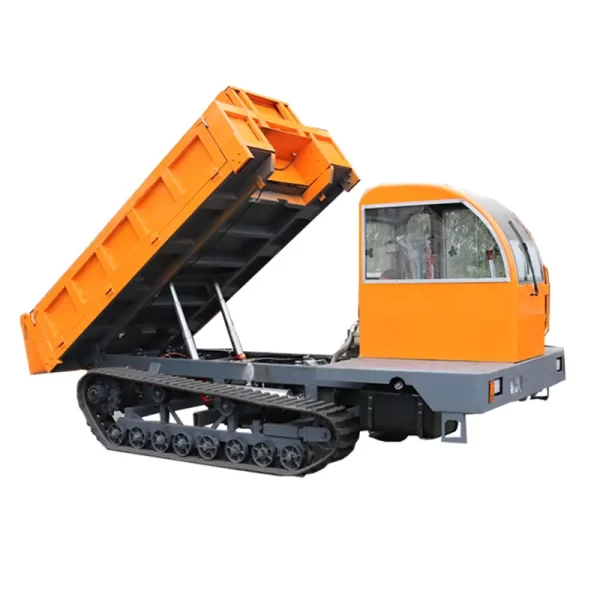

Details about 6-ton crawler transporter
|
Model number
|
6T crawler dumper
|
|
Size (L*W*H: mm)
|
4300*1800*1800
|
|
Carriage size (mm)
|
2700*1800*550
|
|
Steel plate thickness of carriage
|
Bottom 4 side 3
|
|
Chassis width
|
1.85m
|
|
Engine model/power
|
Weichai 4102 supercharged engine/95HP
|
|
Drive way
|
Air brake, rear axle brake
|
|
Gearbox model
|
Dongfeng 145
|
|
Drive axle model
|
Dongfeng 1098 rear axle
|
|
Crawler specifications
|
400*90*70
|
|
Track system
|
Engineering rubber track
|
|
Number of unilateral tugs
|
8 groups
|
|
Tug diameter
|
200 straddle tug 206 bearing
|
|
Hydraulic cylinder model
|
The front and rear two sets of wheels are solid wheels with 207 bearings
|
|
Start method
|
115*900 double top dump
|
|
Rated load
|
6000kg
|
|
Vehicle weight (KG)
|
2500
|
|
Gear
|
3800
|
|
Lifting height (mm)
|
5 forward gears, 1 reverse gear
|
|
Driving speed (km/h)
|
1700mm
|
|
Special custom
|
|
|
1. The specific size can be customized according to the requirements.
2. Multi-functional machine with a variety of optional accessories.
|
|
