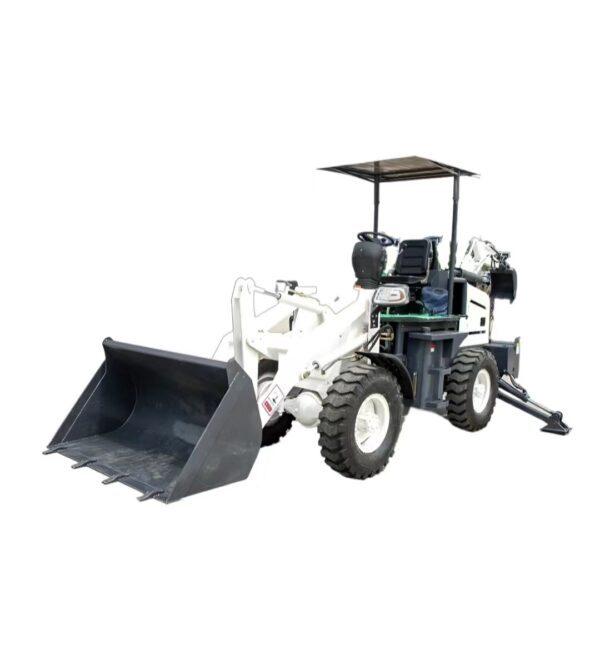

Details about 4×4 mini backhoe loader
|
Model
|
HW08-12
|
Front shovel action time and (S)
|
12
|
|
Dimensions (mm)
|
5100*1350*2580
|
Engine model
|
Changzi 390 (optional Yunnei 490)
|
|
Wheelbase (mm)
|
1960
|
Engine type
|
Three-stroke (four-stroke)
|
|
Wheel base (mm)
|
1130
|
Rated power (KW)
|
25 (37)
|
|
Minimum ground clearance (mm)
|
250
|
Rated speed (r/min)
|
2400
|
|
System pressure (MPa)
|
16
|
Number of cylinders – inner diameter
|
3-90 (4-90)
|
|
Machine weight (Kg)
|
3200
|
Gearbox
|
Fixed shaft power shift
|
|
Maximum speed (Km/h)
|
20
|
Number of stalls
|
Front 2 Back 2
|
|
Maximum digging height (mm)
|
2300
|
Service brake
|
Oil brake drum brake
|
|
Maximum digging force (KN)
|
25
|
Parking brake
|
Manual
|
|
Excavator rotation angle (°)
|
180
|
Fuel tank(L)
|
20
|
|
Maximum unloading height (mm)
|
2300
|
Hydraulic oil tank (L)
|
20
|
|
Maximum unloading distance (mm)
|
800
|
Drive type
|
Four-wheel drive
|
|
Bucket capacity (m³)
|
0.4
|
Variable speed
|
Hydraulic transmission
|
|
Loading maximum lifting height (mm)
|
3000
|
Braking distance (mm)
|
300
|
|
Maximum rise force (KN)
|
28
|
