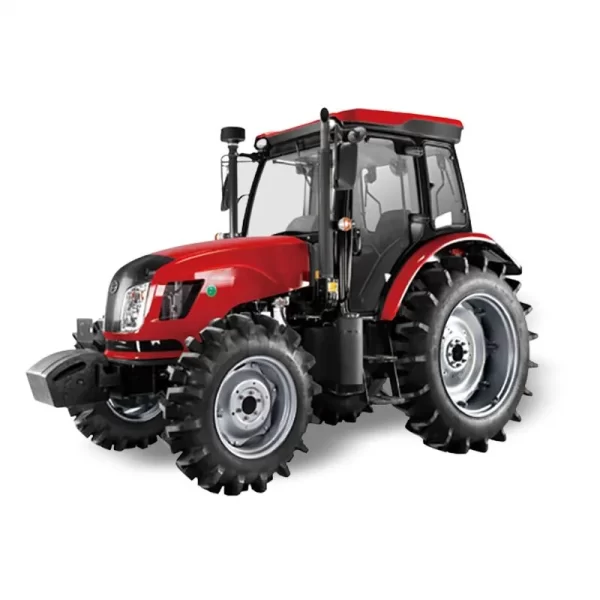

Four wheel drive agricultural tractor

Engine power:66.2KW/73.5KW/88.2KW
Wheelbase:  2275mm
Min. ground clearance:450mm
Weight:3820 kg
Dimensions:453 × 203 × 273 cm

Details about Four wheel drive agricultural tractor



Model DF904-6 DF1004-6 DF1204-6
Engine power 66.2KW 73.5KW 88.2KW
Size 4530*2030*2275mm 4530*2030*2730mm 4530*2030*2730mm
Wheelbase 2275mm 2275mm 2275mm
Min. ground clearance 450mm 450mm 450mm
Type 4*4 4*4 4*4
Front tire 8.3-24/9.5-24/11.2-24/12.4-24/12.4-26
Rear tire 11-32/14.9-30/16.9-30/16.9-34/13.6-38
Weight 3820KGS
IDEAL series large and medium-sized tractors are from 20 to 440hp and matching products and have an annual productivity of 20,000 sets. Products are sold all around the country and are exported to regions in Europe, the United States, Russia, Ukraine, South America, Africa, Southeast Asia, Australia, etc.
Always prioritizing users’ demands, the company absorbs advanced experience of mature domestic machine types and introduces the latest advanced technology from abroad to continuously improve and perfect products in combination with the condition of China to better meet different operation requirements of wide users.





Diesel engine: Adopt YUCHAI or WEICHAI diesel engine, good reliability, large reserves of torque, low fuel consumption, and high economic efficiency. Adopts turbo-charging system so it has reliable performance and strong power.

Flexible steeringGearbox using 4 × (4+2) engaging sleeve, shuttle-type gearshift, there are 16 forward gears, 8reverse gears, a reasonable match between the gears, and have high efficiency.
Wear-resistant tires: Full hydraulic front wheels steering, independent oil circuit for the steering system, manipulating flexible, reliable, and save energy.
Standard configuration: 16F+16R gears, has the features like energy-saving, reliability, and comfort.





Instrument cluster: Adoption of new U.S.A ACTUANT instrument cluster gives advantages of high sealing performance and multi-information integrated display.

Engine: Weichai/Yuchai 4-cylinder in-line engine inherits the excellent technology of the WEICHAI or YUCHAI engine and adopts turbocharging system so it has reliable performance and strong power.
Power emission upgrade, simple and reasonable gear distribution, strong agronomic adaptability, working speed required for various farmland operations, higher operating efficiency, and good fuel economy.
Independently develop the chassis system, increase the clutch operation interlocking device, the gear combination is more reliable, and the gears will not be off or chaotic.
