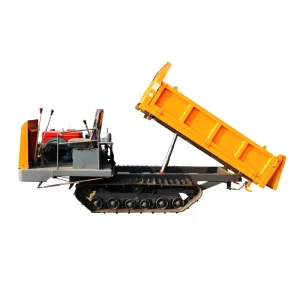

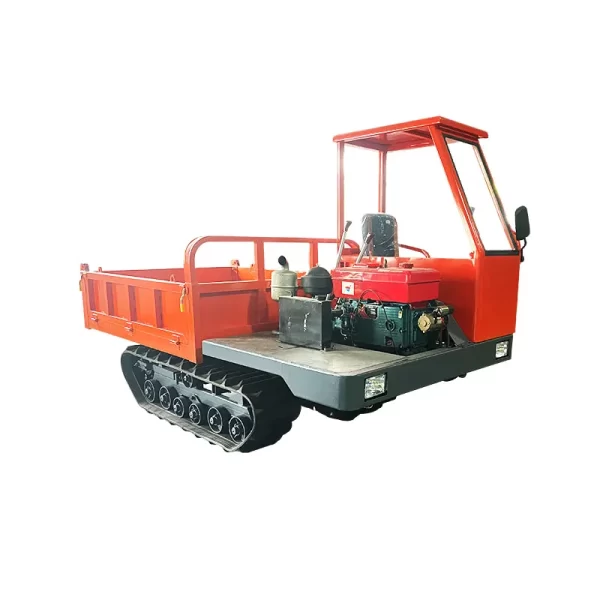

Details about 2-ton crawler transporter
|
Number
|
2T crawler dumper
|
|
Size:L*W*H (mm)
|
3250*1600*1850
|
|
Cargo size (mm)
|
2000*1600*400
|
|
Carriage plate thickness
|
Bottom 3 sides 3
|
|
Chassis width (m)
|
2
|
|
Engine model
|
Changchai single-cylinder, water-cooled engine
|
|
Engine power
|
25HP
|
|
Crawler specifications
|
350*90*46
|
|
Crawler system
|
Agricultural rubber track
|
|
Number of unilateral tugs
|
6 groups
|
|
Tug diameter
|
180 Riding a straddle tug 205 Bearing
|
|
Hydraulic cylinder
|
115*900 Single top dumper
|
|
Gearbox model
|
Yunzhou 18
|
|
Rated load (T)
|
2
|
|
Vehicle weight (kg)
|
1800kg
|
|
Minimum turning radius (m)
|
2.5
|
|
Gear
|
High/low（3+1）
|
|
Lifting height
|
1200mm
|
|
Driving speed (km/h)
|
0-12
|
|
Gradeability
|
≤35％
|
|
Loading Capacity
|
2000kgs
|
|
Special custom
|
|
|
1. The specific size can be customized according to the requirements.
2. Multi-functional machine with a variety of optional accessories.
|
|
