Details about 2.5t mini excavator digger
|
Model
|
ID-25
|
|
Overall dimension (L*W*H)
|
4170mm*1300mm*2280mm
|
|
Axle base(Track length on the ground)
|
1230mm
|
|
Track gauge
|
1070mm
|
|
Min. Ground clearance
|
230mm
|
|
Swing radius at the tail
|
1180mm
|
|
Maximum Travel speed
|
3.5km/h
|
|
Width of track shoe
|
230mm
|
|
Number of track shoes per side
|
38pcs
|
|
Number of upper rollers per side
|
0
|
|
Number of bottom rollers per side
|
4
|
|
Standard bucket capacity
|
0.1m³
|
|
Swing speed
|
12rpm
|
|
Max. Grade ability
|
30°
|
|
Max. Bucket digging force
|
15.3KN
|
|
Max. Arm digging force
|
10.5KN
|
|
Hydraulic system pressure
|
18Mpa
|
|
Machine weight
|
2500kg
|
|
Arm length
|
1000mm
|
|
Emission Standard
|
Euro5/ EPA
|
|
Engine Model
|
KUBOTA
|
|
Power/Rotation speed
|
14.1kw(20HP)2000rpm
|
|
Optional Engine
|
China Laidong 22.1kw,2300rpm
|
|
Number of cylinders
|
3
|
|
Max. Digging height
|
3700mm
|
|
Max. Dumping height
|
2290mm
|
|
Max. Digging depth
|
2450mm
|
|
Max. Vertical digging depth
|
2160mm
|
|
Max. Digging radius
|
4370mm
|
|
Min .swing radius
|
2020mm
|
|
Max. Lifting the height of the blade
|
240mm
|
|
Max. Cutting depth of the blade
|
310mm
|
|
Boom swing angle(Left)
|
75°
|
|
Boom swing angle(Right)
|
45°
|

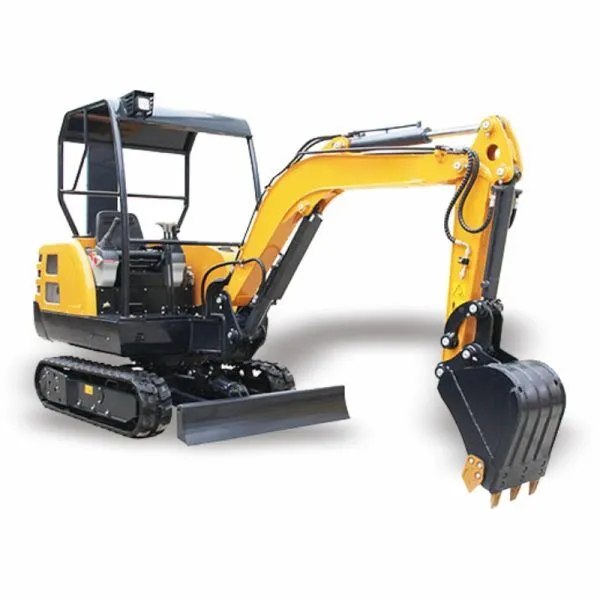

The ID-25 Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.
- Engine: GAOTENG engine, single-cylinder air-cooled, 25HP, 18.4KW
- Hydraulic pump (gear pump) is easy to maintain, long life
- Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets you access and work in the tightest areas. Dozer float features allow for easy clean-up.
- Multiple valves under the operating handle, The benefit of less effort and improved control is in your hands!
- Rubber track no damage to cement, tile floor
- Diesel level gauge: Check engine oil when it is not easy to start

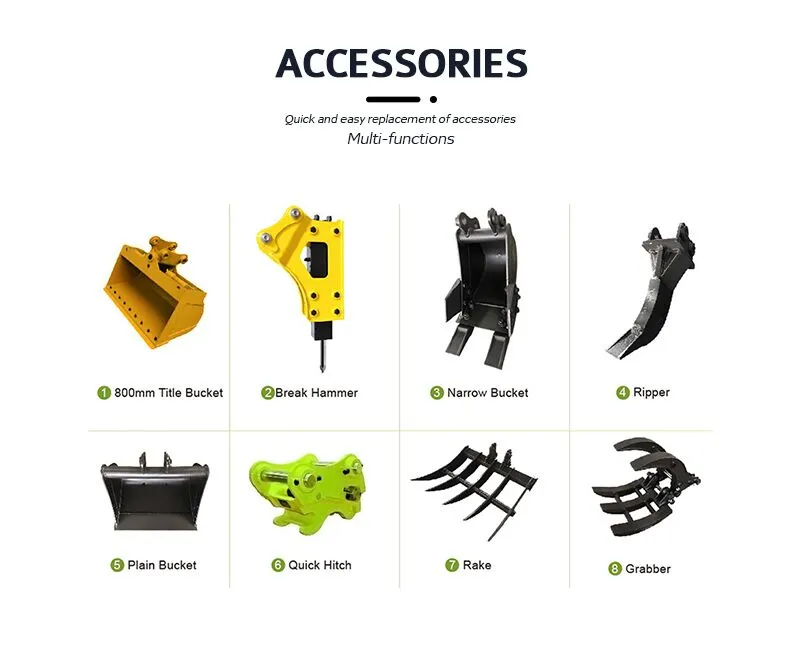

We also could supply excavator attachment tools including 20mm bucket,40 mm bucket, 60 mm bucket, Breaker hammer, Log grappler, Auger drilling, Ripper, Rake, Tool kit. We also could supply mini digger attachment tools as customer requests.
