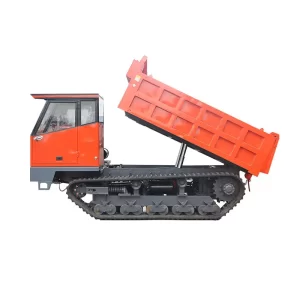

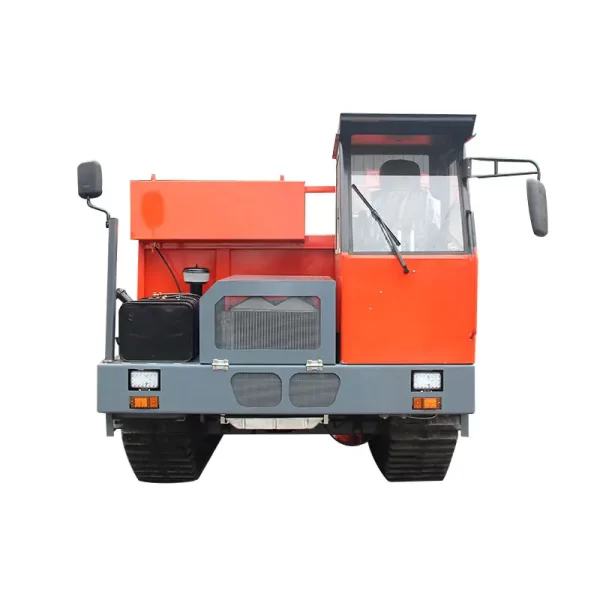

Details about 10-ton crawler transporter
|
Model number
|
10T crawler dumper
|
|
Size(L*W*H)
|
4500mm*2000mm*2650mm
|
|
Cargo size (mm)
|
3000*2000*700
|
|
Vehicle weight( kg)
|
3000
|
|
Steel plate thickness of carriage
|
Bottom 4 side 3
|
|
Chassis width
|
2m
|
|
Engine model/power
|
Yuchai 4108 Turbo/158HP
|
|
Drive way
|
Air brake, rear axle brake
|
|
Gearbox model
|
Wanliyang 653 gearbox
|
|
Drive axle model
|
Dongfeng 457 Rear axle
|
|
Crawler specifications
|
450*90*82
|
|
Track system
|
Engineering rubber track
|
|
Number of unilateral tugs
|
10 groups
|
|
Tug diameter
|
Increased solid wheel 206 bearing
|
|
Hydraulic cylinder model
|
The front and rear two sets of wheels are solid wheels with 207 bearings
|
|
Start method
|
Electric start
|
|
Driving speed (km/h)
|
0-25
|
|
Gradeability
|
≤35％
|
|
Loading Capacity
|
10000kgs
|
|
Special custom
|
|
|
1. The specific size can be customized according to the requirements.
2. Multi-functional machine with a variety of optional accessories.
|
|
