Details about 1 Ton Mini Crawler Small Excavator
|
Model
|
PC10
|
|
Rated power
|
12HP
|
|
Bucket Capacity
|
0.025 m3
|
|
Engine Model
|
CHANGCHAI 192F
|
|
Weight
|
800 kg
|
|
Max. digging force
|
7.5KN
|
|
Pump form
|
Single gear pump
|
|
Working pressure
|
14Mpa
|
|
Swing speed
|
12 rpm
|
|
Travel speed
|
2.2Km/h
|
|
Gradeability
|
30°
|
|
Ground pressure
|
19Kpa
|
|
Total width
|
880mm
|
|
Total height
|
1380- 1980mm(Folding safety frame)
|
|
Total length
|
2600mm
|
|
Min. ground clearance
|
100mm
|
|
Track ground length
|
1140mm
|
|
Track width
|
150mm
|
|
Bulldozer is retractable from
|
820-1150mm
|
|
Max. digging distance
|
2750mm
|
|
Max. digging depth
|
1450mm
|
|
Max. digging height
|
2600mm
|
|
Max. dumping height
|
1760mm
|
|
Min. Swing radius
|
1100mm
|
|
Max. ground clearance of bulldozer
|
120mm
|
|
Max. support depth of bulldozer
|
120mm
|

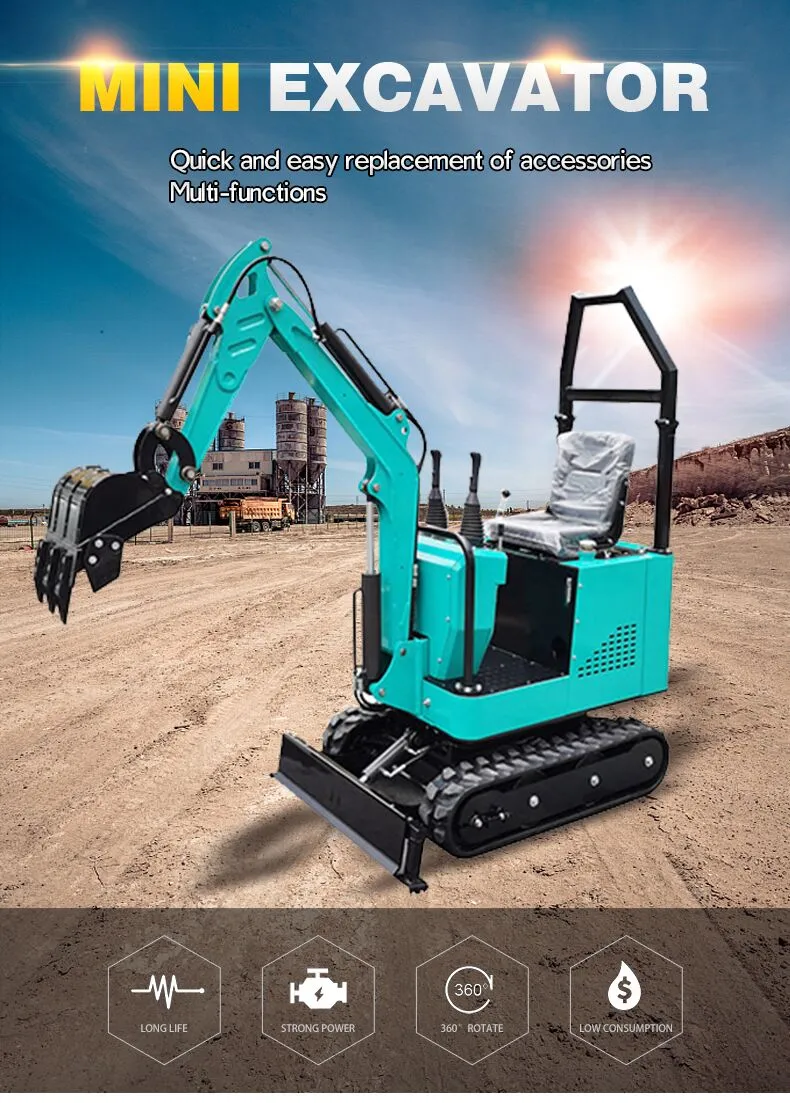

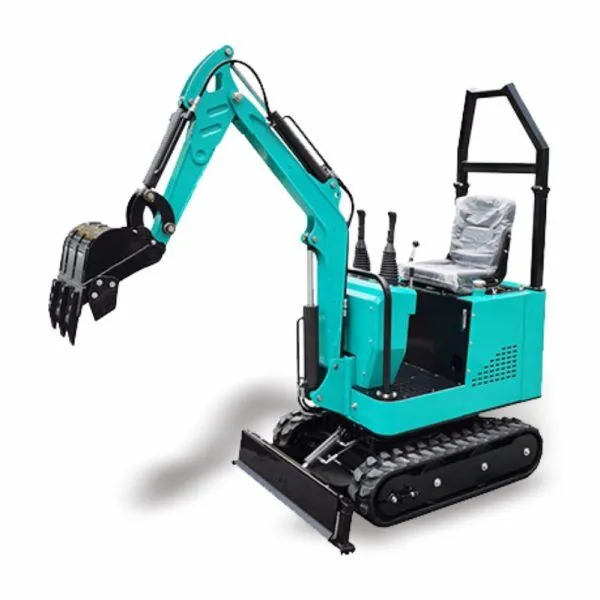

The PC-10 Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.
- Engine: CHANGCHAI-192 engine, single-cylinder air-cooled, 12HP, 9KW
- Hydraulic pump (gear pump) is easy to maintain, long life
- Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets you access and work in the tightest areas. Dozer float features allow for easy clean-up.
- Multiple valves under the operating handle, The benefit of less effort and improved control is in your hands!
- Rubber track no damage to cement, tile floor
- Diesel level gauge: Check engine oil when it is not easy to start

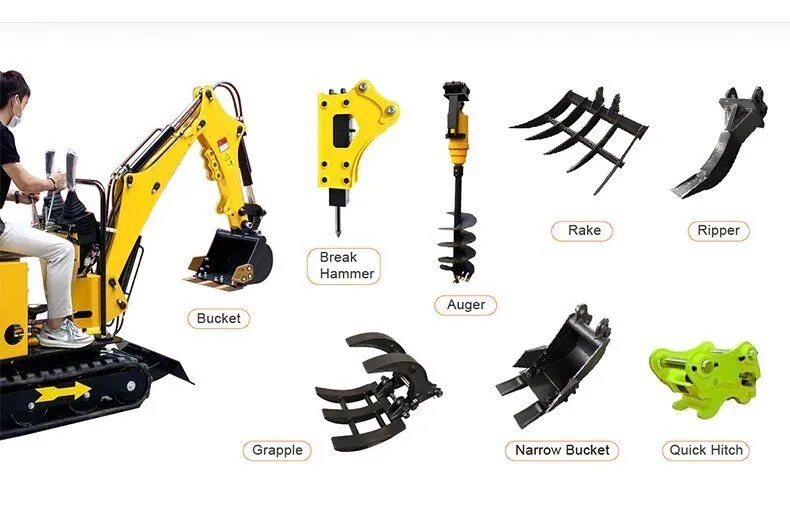

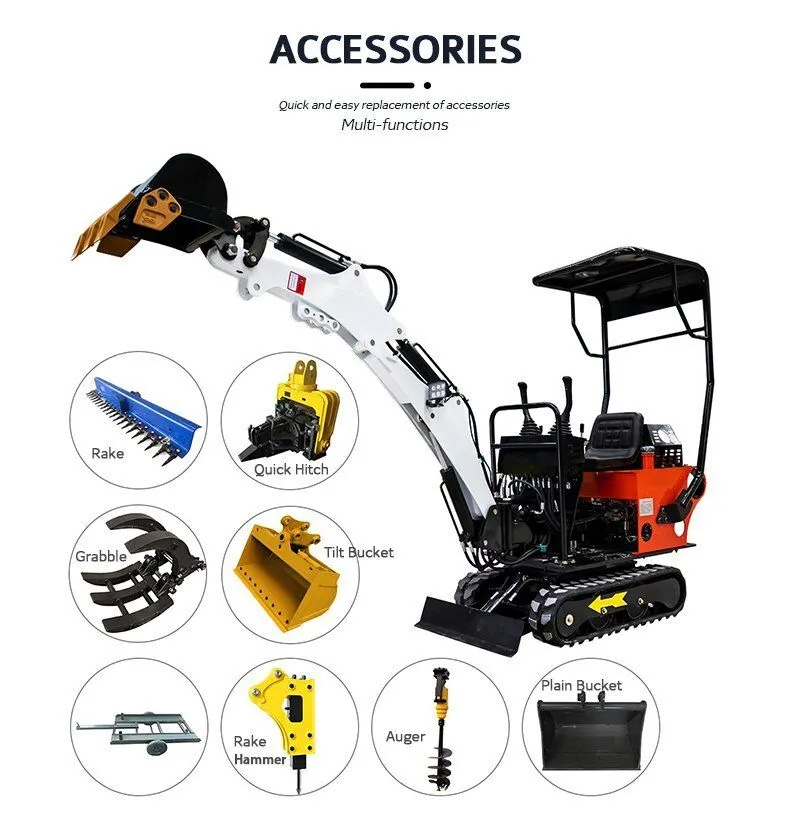

We also could supply excavator attachment tools including 20mm bucket,40 mm bucket, 60 mm bucket, Breaker hammer, Log grappler, Auger drilling, Ripper, Rake, Tool kit. We also could supply mini digger attachment tools as customer requests.
