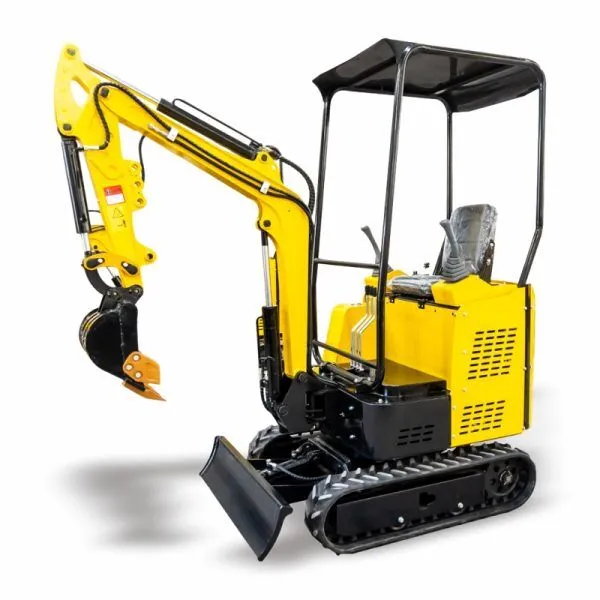

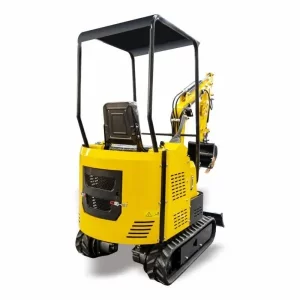

Details about 1.5t mini Excavator
|
Model
|
ID-15
|
|
Weight
|
1500kg
|
|
Digging bucket capacity
|
0.025cbm/120kg
|
|
Bucket width
|
380mm
|
|
Engine
|
KOOP (292F)
|
|
Bore stroke
|
Double cylinder, Air cool
|
|
Rated power
|
14 kw/3000r/min
|
|
Displacement
|
0.794 L
|
|
Travel speed
|
3.5km/h
|
|
Overall dimension( LxWxH)
|
2550x940x1380 mm
|
|
Wheelbase
|
770 mm
|
|
The total length of the track
|
1090mm
|
|
Platform ground clearance
|
380 mm
|
|
Platform back turning radius
|
733 mm
|
|
Chassis width
|
940 mm
|
|
Track width
|
180 mm
|
|
Chassis ground clearance
|
380 mm
|
|
Track height
|
320 mm
|
|
Max Digging depth
|
1650 mm
|
|
Max. Vertical digging depth
|
1800 mm
|
|
Max Digging height
|
2610 mm
|
|
Max. Dumping height
|
1850 mm
|
|
Max. Digging radius on ground
|
2850 mm
|
|
Min. Rotation radius
|
1330 mm
|
|
Max. Upgrade height of bulldozer blade
|
345 mm
|
|
Max. Digging depth of bulldozer blade
|
255 mm
|
The ID-15 Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.
- Engine: K-POP engine, single-cylinder air-cooled, 19HP, 14KW
- Hydraulic pump (gear pump) is easy to maintain, long life
- Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets you access and work in the tightest areas. Dozer float features allow for easy clean-up.
- Multiple valves under the operating handle, The benefit of less effort and improved control is in your hands!
- Rubber track no damage to cement, tile floor
- Diesel level gauge: Check engine oil when it is not easy to start

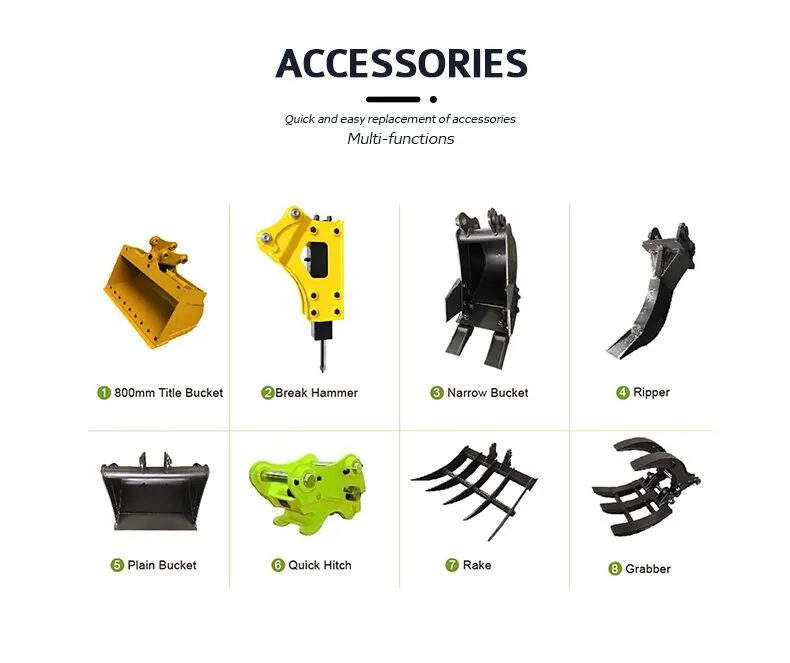

We also could supply excavator attachment tools including 20mm bucket,40 mm bucket, 60 mm bucket, Breaker hammer, Log grappler, Auger drilling, Ripper, Rake, Tool kit. We also could supply mini digger attachment tools as customer requests.
